Diamond Edge Polishing machines convert thermoplastic sheet edges to a brightly polished surface in one operation.

Polishing is carried out by a cutter hub fitted with diamond tooling. The cutter hub is mounted onto a variable speed precision spindle which rotates at 12000 – 20000rpm.

Feed tracks on either side of the cutter hub accurately guide the material over the cutter. A belt transport system feeds the material across the cutter at around 1 metre per minute, automatically compensating for different material thicknesses. Thinner panels can also be stacked together up to the maximum capacity of the machine.

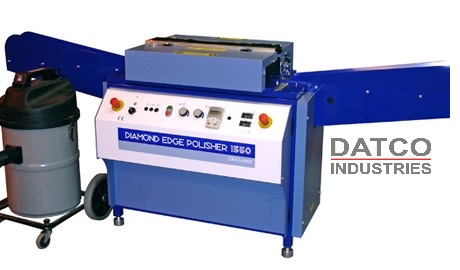

Diamond Edge Polisher

• Polishes saw cut edges in one pass.
• Polish materials up to 55mm thick.
• Can polish multiple sheets at once.
• 1117mm infeed and outfeed tracks.
• Automatic feed belts.
